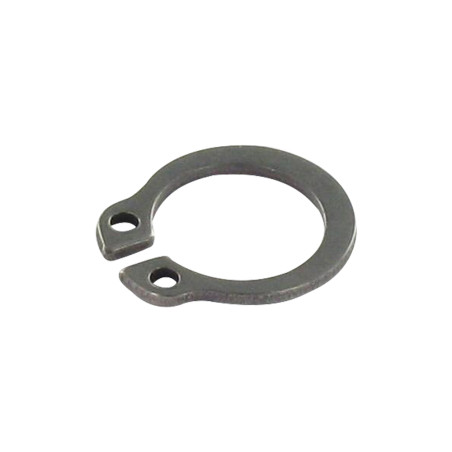

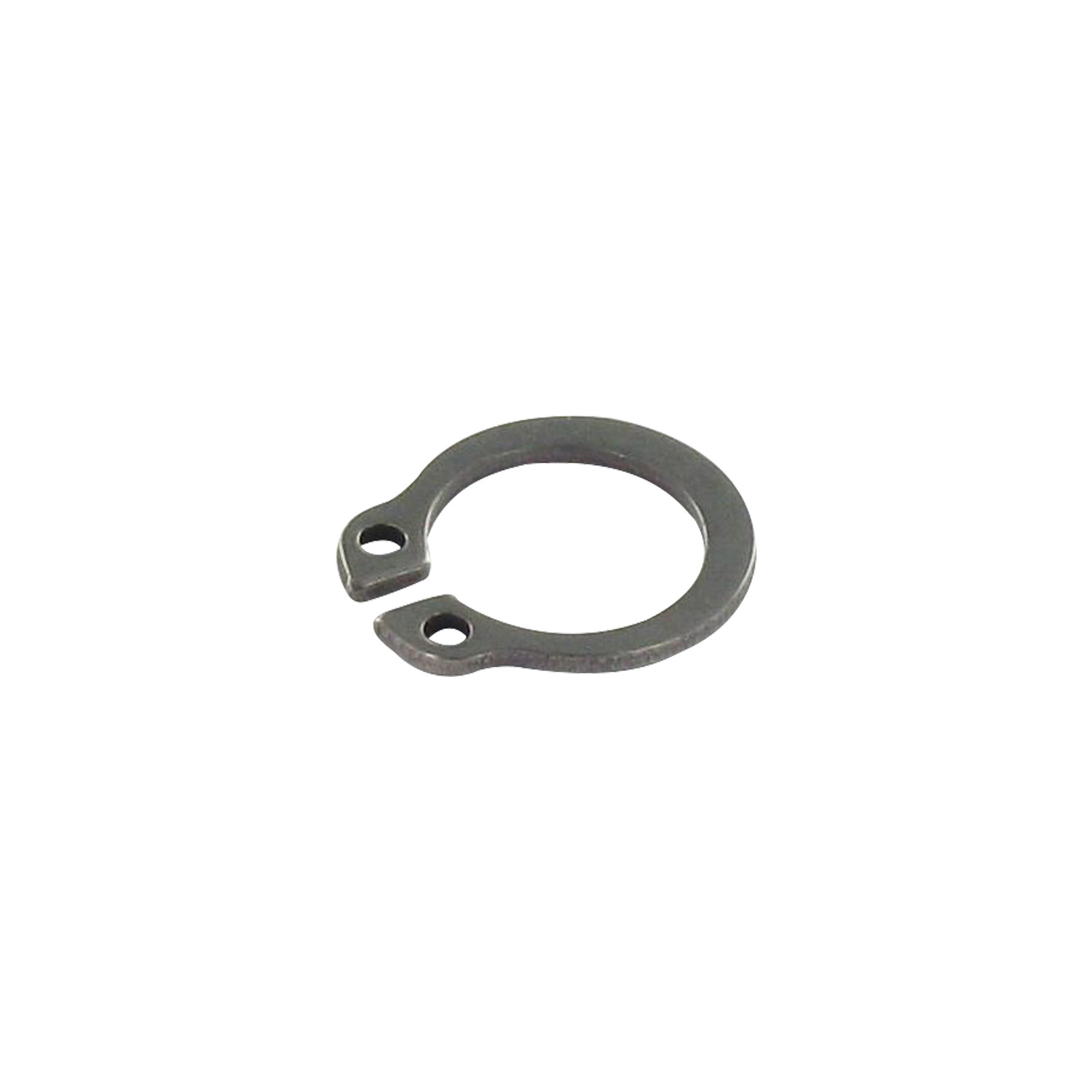

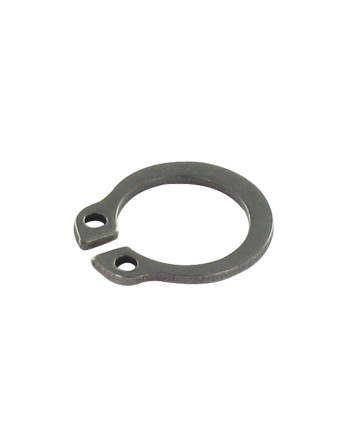

Sicherungsring Außenbereich Rohstahl Für Wellen Durchmesser 3

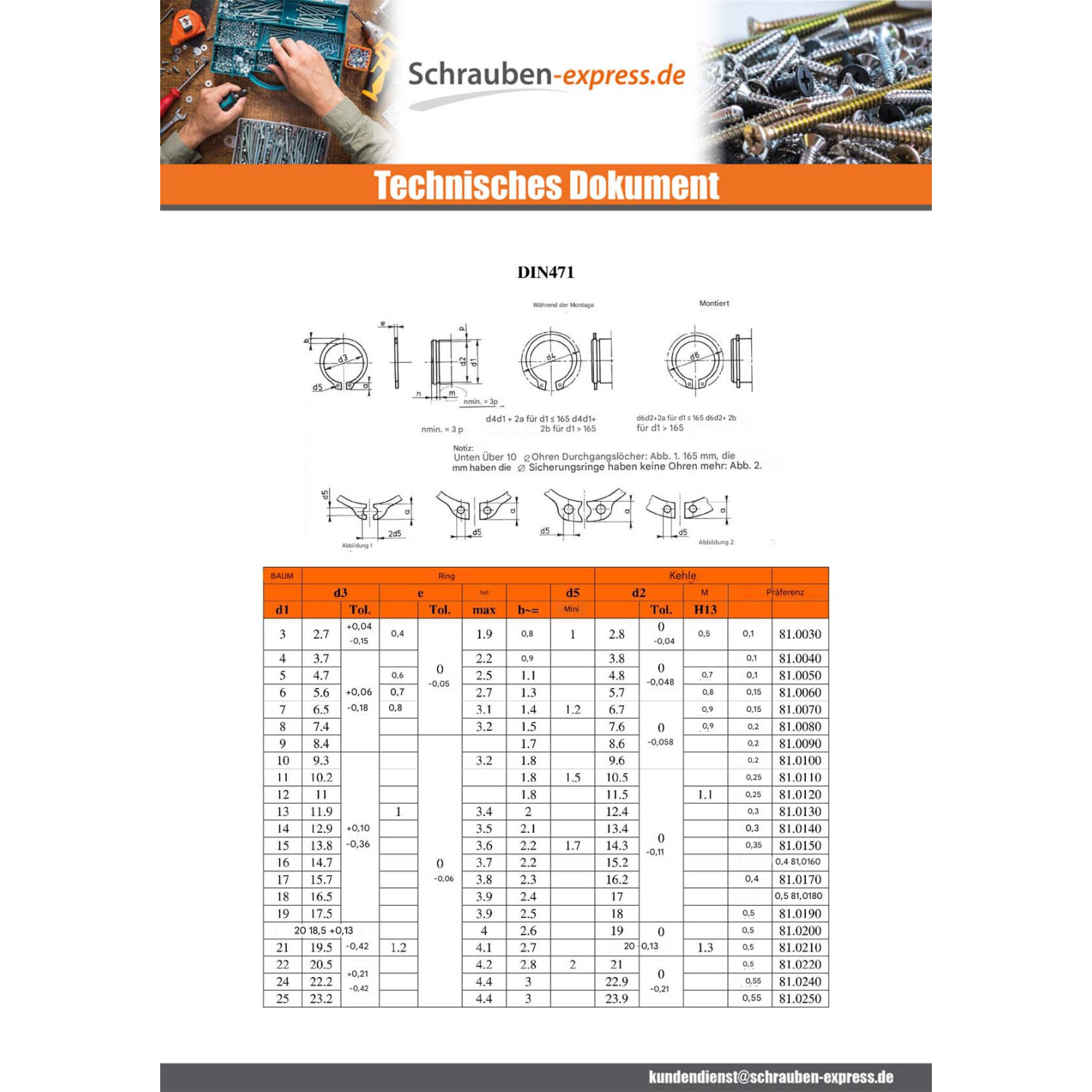

Durchmesser = 3, Unter Produkt Familie = Außen-Sicherungsring für Wellen, Material = Stahl, Norm = VS-DIN471, Produkte = Sicherungsringe
Maßführung (mm)
| DIAMETRE ARBRE |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
44 |
45 |
46 |
47 |
48 |
50 |
52 |
54 |
55 |
56 |
57 |
60 |
62 |
63 |
65 |
67 |
70 |
72 |
75 |
77 |
78 |
80 |
82 |
85 |
87 |
90 |
92 |
95 |
98 |
100 |
105 |
110 |
115 |
120 |
125 |
130 |
| DIAMETRE INTERIEUR |
2.7 |
3.7 |
4.7 |
5.6 |
6.5 |
7.4 |
8.4 |
9.3 |
10.2 |
11 |
11.9 |
12.9 |
13.8 |
14.7 |
15.7 |
16.5 |
17.5 |
18.5 |
19.5 |
20.5 |
21.5 |
22.2 |
23.2 |
24.2 |
24.9 |
25.9 |
26.9 |
27.9 |
28.6 |
29.6 |
30.5 |
31.5 |
32.2 |
33.2 |
34.2 |
35.2 |
36 |
36.5 |
37.5 |
38.5 |
40.5 |
41.5 |
42.5 |
43.5 |
44.5 |
45.8 |
47.8 |
49.8 |
50.8 |
51.8 |
52.8 |
55.8 |
57.8 |
58.8 |
60.8 |
62.5 |
65.5 |
67.5 |
70.5 |
72.5 |
73.5 |
74.5 |
76.5 |
79.5 |
81.5 |
84.5 |
86.5 |
89.5 |
92.5 |
94.5 |
98 |
103 |
108 |
120 |
118 |
123 |
| EPAISSEUR |
0.4 |
0.4 |
0.6 |
0.7 |
0.8 |
0.8 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
1.75 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
4 | |
Andere Referenzen : 81.0030 OVCIRCLIPS QUIN00179 81.0030 XF 0008 A XF 0008 A OVCIRCLIPS 3663072124936
